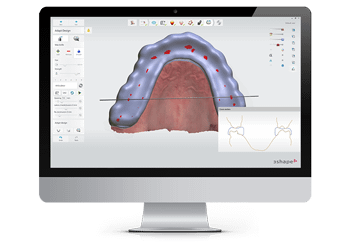

3Shape Splint Studio
Take control of your splint workflow

Are you looking to add new and highly profitable services? 3Shape Splint Studio, with automated design functionality, enables you to design and manufacture occlusal splints in just a few clicks.
what is splint studio
Design and produce splints in-house or with your preferred partner
3Shape Splint Studio is the go-to solution for occlusal splints for the treatment of bruxism and temporomandibular joint disorders. Designed for both practice and lab professionals, the easy to use software is integrated with a wide range of material and manufacturing options. And includes a built-in virtual articulator, direct integration to 3Shape TRIOS and 3Shape lab scanners, as well as support for STL-import to make designing and production more efficient and predictable.
With 3Shape Splint Studio, you are in complete control over your workflow. You decide whether to produce designs in-house or send to your preferred production partner.
SHOW ME THE BENEFITS FOR:
clinic
lab
Benefits
Full control
By controlling the full workflow from design to milling or printing you can ensure perfection from beginning to end.
Key splint types
Fast and optimized tools enable you to design most of the occlusal splint types.
Mill or print-ready
The splint design is automatically optimized for your selected manufacturing method.
Flexible workflows
With our open integrations, you are never limited to a certain workflow or manufacturer. You can choose to design and produce in-house or send to a lab.
Workflow
3Shape Splint Studio enables you to design and produce a wide range of occlusal splints in a fully guided workflow.
Scan

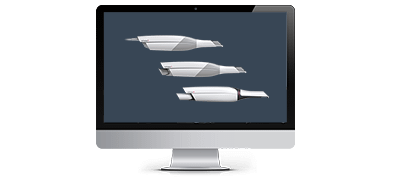

Scan your patient with TRIOS intraoral scanner.

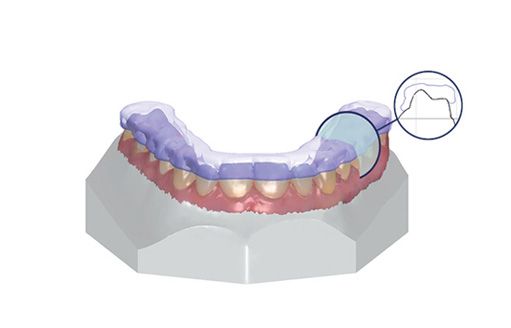

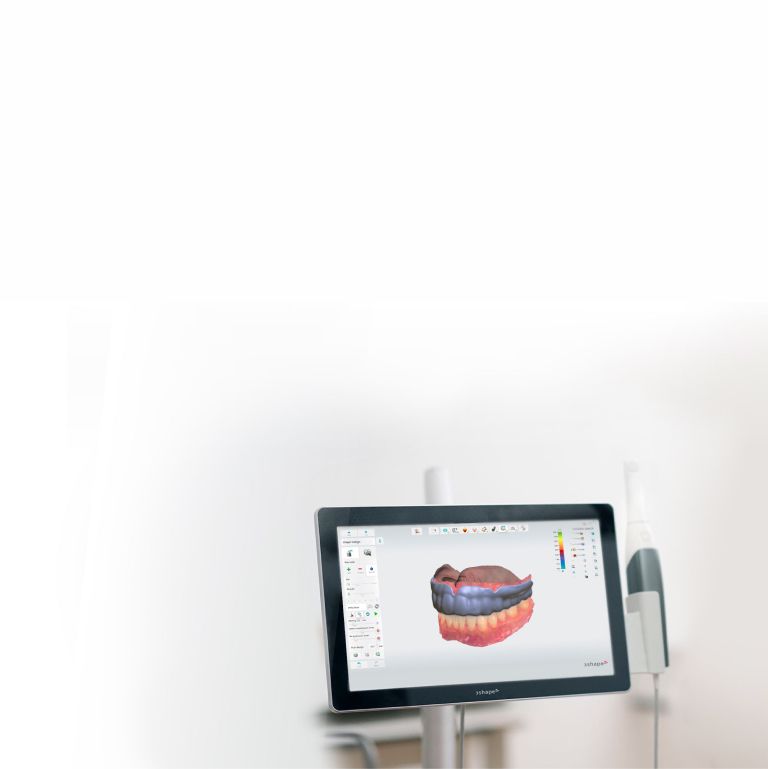

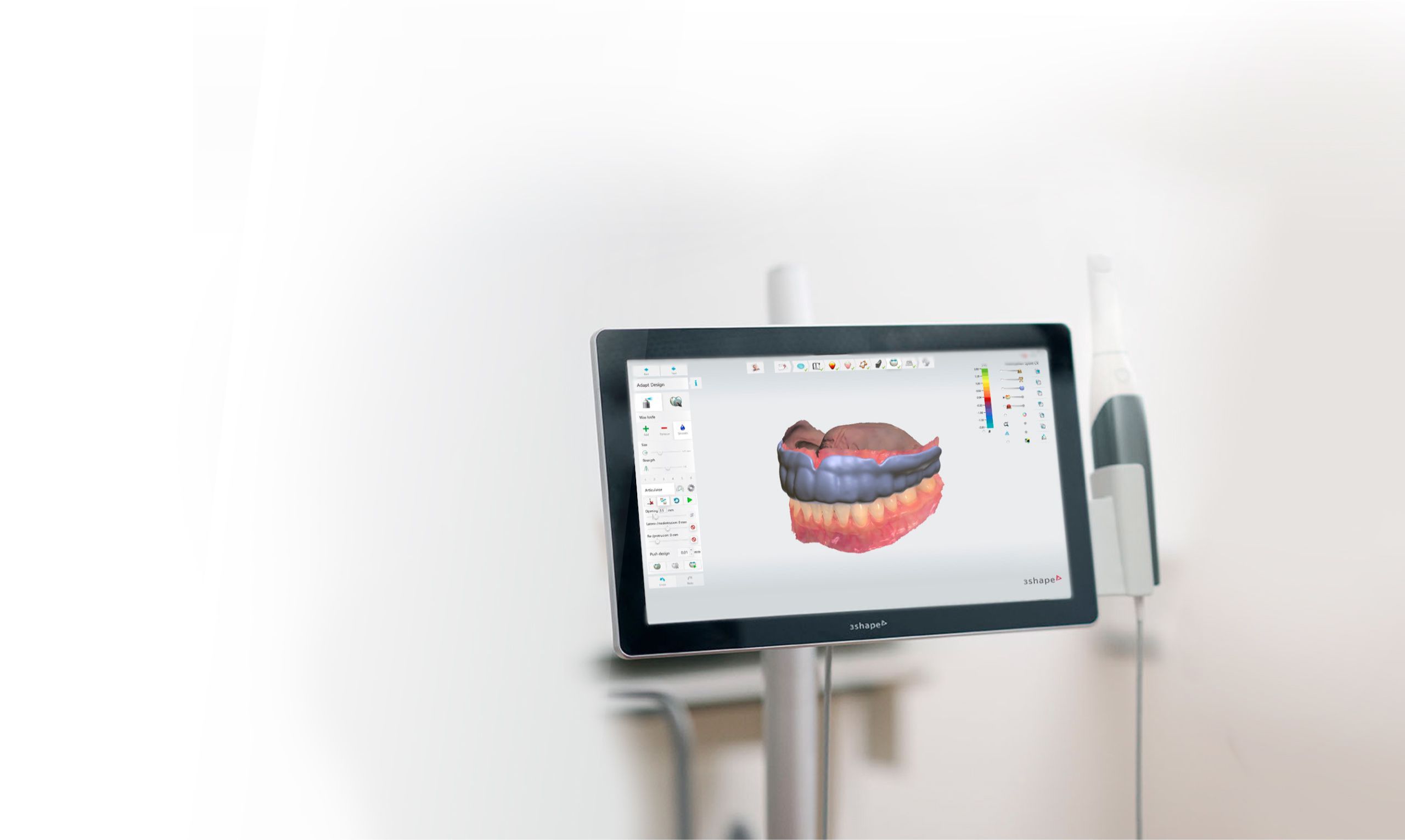

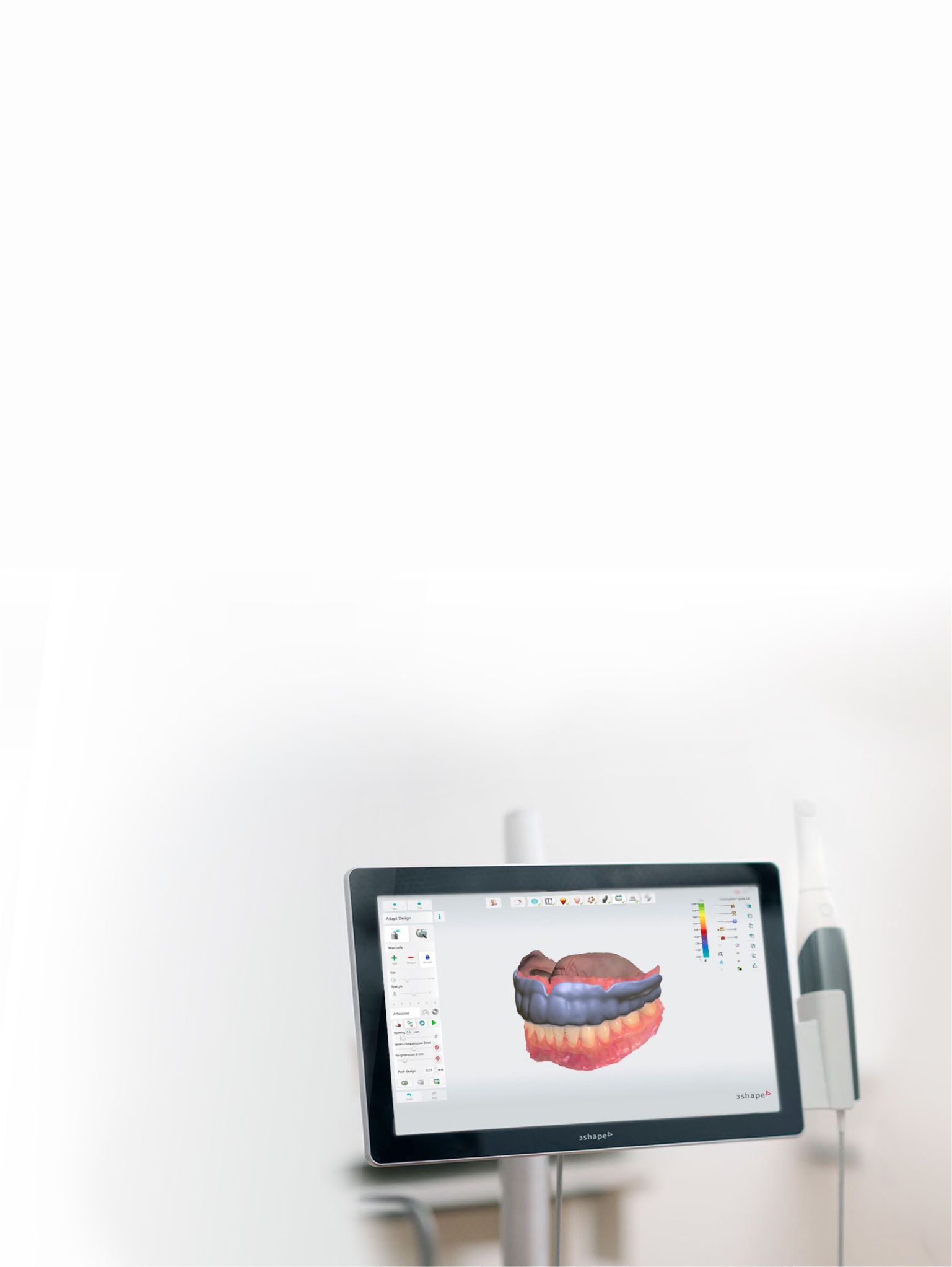

Design occlusal splints
Design a wide range of occlusal splints in a guided worklfow.
3D print or mill
Select your preferred manufacturing method and send your splint design to your 3D printer, mill, or preferred manufacturing partner.
What you will get
A guided workflow
3Shape Splint Studio has an easy to follow, step-by-step workflow. It also includes our notification and hint system that makes Splint Studio easy to learn for new users and help the existing users with tips and tricks. Once your design is complete you choose how you want to manufacture – in-house or send it to your preferred lab.
Efficiency and precision with minimal manual adjustments

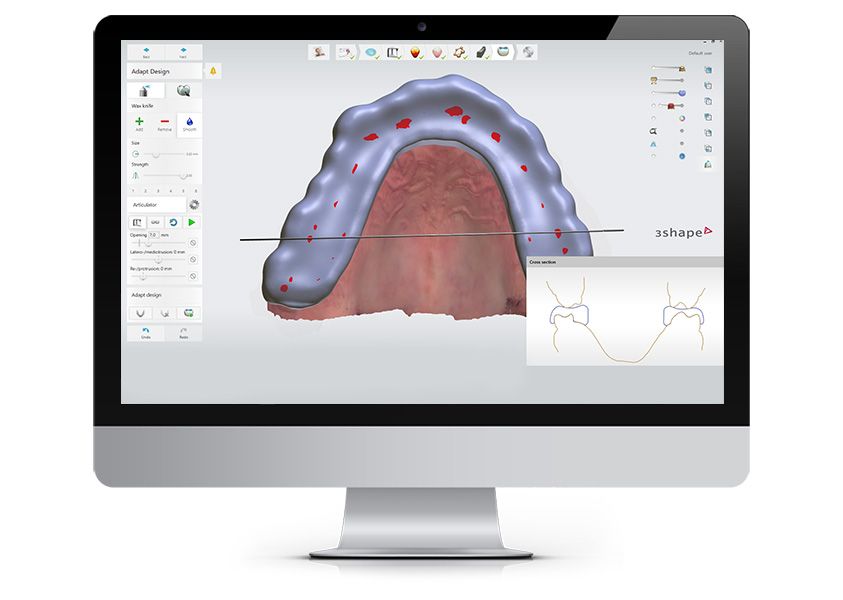

The intuitive design workflow ensures your ability to make designs that require minimal manual adjustments. The sophisticated and adjustable virtual articulator gives you the possibility to establish the desired contacts and function, while optimal internal fit and retention are easy to achieve with easy-to-use tools and design settings. Automated tools and virtual articulator help you save time and increase efficiency, without compromising the high quality.
Key splint types in one solution

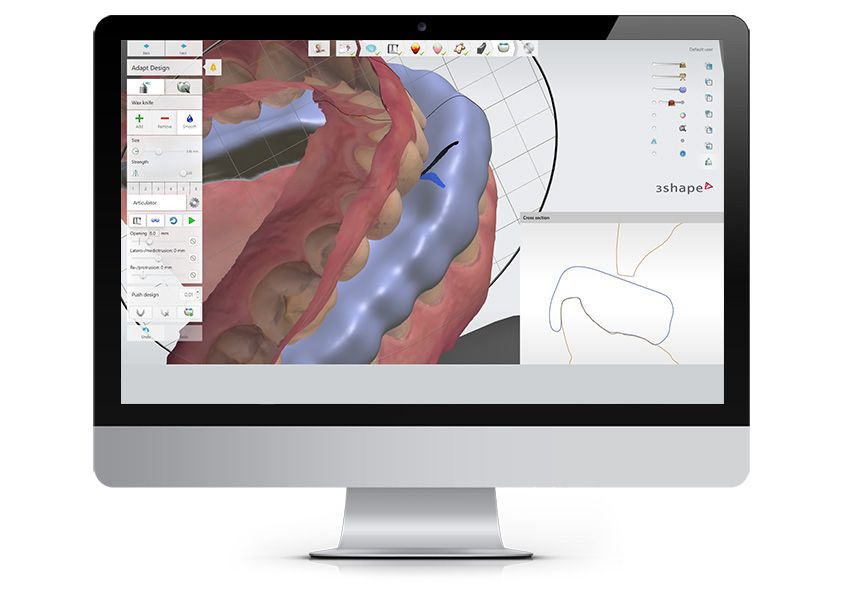

Maxillary or mandibular occlusal splints can be designed with elements such as anterior guidance ramps, flat planes, centric stops and bite blocks.
Ensure patient comfort

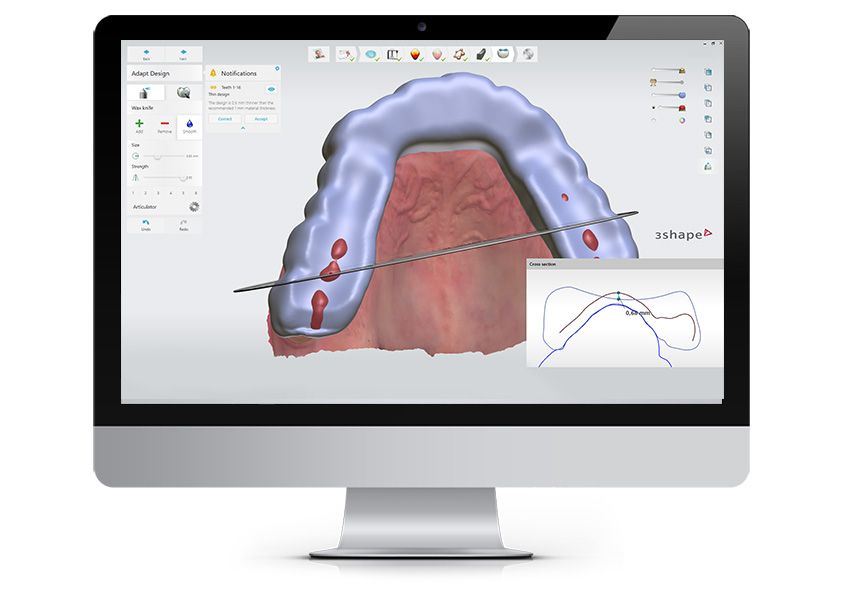

Patient safety and comfort are crucial when it comes to occlusal splints. Our solution helps you balance minimum material thickness and the slimmest design possible for patient comfort with automated tools and notifies you if you need to adjust the design.
Benefits
The power of digital
Digital splint design through an intuitive workflow offers unrivaled speed, precision and predictability.
Key splint types
Fast and optimized tools enable you to design most of the occlusal splint types.
Mill or print-ready
The splint design is automatically optimized for your selected manufacturing method.
Flexible workflows
With our open ecosystem, you are never limited to just one way of collaborating with your customer. You can offer design, manufacturing or the complete service.
Workflow
3Shape Splint Studio enables you to design and produce a wide range of occlusal splints in a fully guided workflow.
Scan

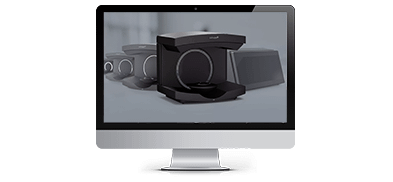

Receive a scan from a clinic or use your lab scanner and digitize an impression or a gypsum model.
Design occlusal splints
Design a wide range of occlusal splints in a guided workflow.
3D print or mill
Select your preferred manufacturing method – 3D printing or milling.
What you will get
A guided workflow
3Shape Splint Studio has an easy to follow, step-by-step workflow. It also includes our notification and hint system that makes Splint Studio easy to learn for new users and help the existing users with tips and tricks. Once your design is complete you choose how you want to manufacture.
Efficiency and precision with minimal manual adjustments
The intuitive design workflow ensures your ability to make designs that require minimal manual adjustments. The sophisticated and adjustable virtual articulator gives you the possibility to establish the desired contacts and function, while optimal internal fit and retention are easy to achieve with easy-to-use tools and design settings. Automated tools and virtual articulator help you save time and increase efficiency, without compromising the high quality.
Key splint types in one solution
Maxillary or mandibular occlusal splints can be designed with elements such as anterior guidance ramps, flat planes, centric stops and bite blocks.
Ensure patient comfort
Patient safety and comfort are crucial when it comes to occlusal splints. Our solution helps you balance minimum material thickness and the slimmest design possible for patient comfort with automated tools and notifies you if you need to adjust the design.

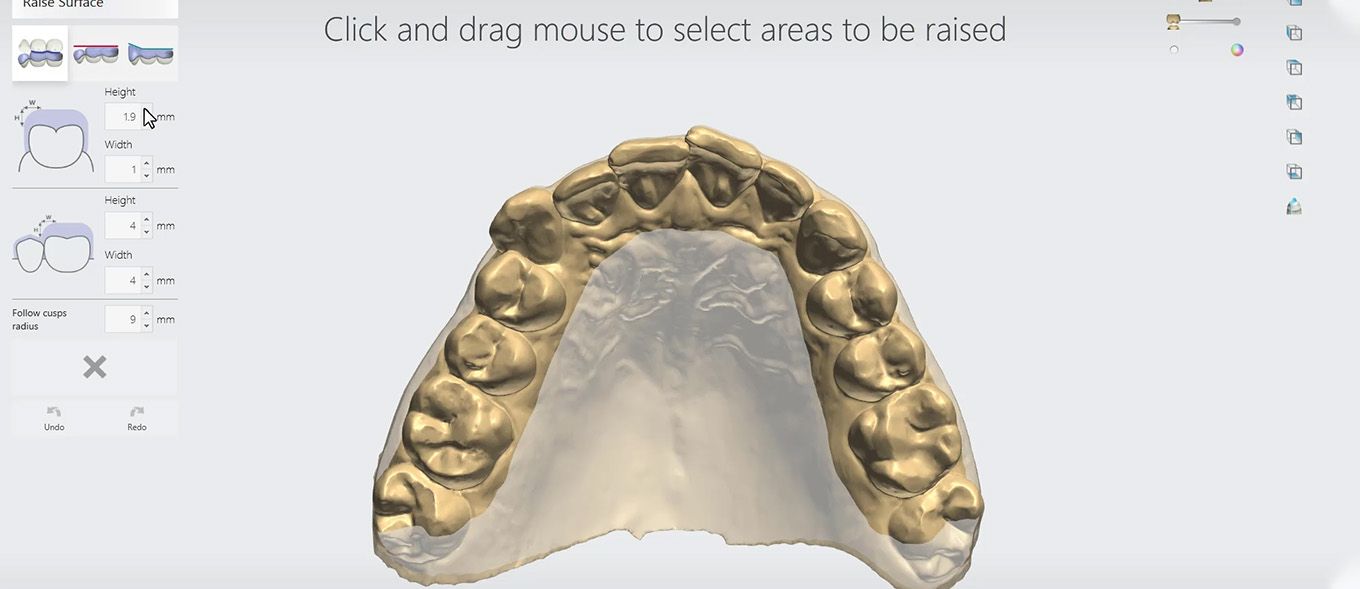

Splint Studio in action
Watch the demo to see how Splint Studio can boost your business with an efficient and automated workflow.
Integrations
Unrivaled option of ecosystems
Choosing an open system is one of the best ways to secure access to the most up-to-date technology, materials, partners and prices. With 3Shape products you can directly connect with your preferred partners and secure the most cost-effective and relevant options for your practice. From treatment workflows to design services, libraries or 3rd party manufacturing equipment – it’s all just a click away.
Clinics
Clinics can cloud-connect to any TRIOS Ready Lab. Send files with a click, discuss and review cases from any device.
Orthodontic, removable and restorative labs
Advertise your lab as a TRIOS Ready Lab at no cost and cloud-connect with dentists and start receiving TRIOS digital impressions to work on.
Design services
Connect directly with trusted 3rd party designers to outsource design and production of occlusal splints.
Mills and 3d printers
Benefit from a wide range of integration with milling machines and printers.
Client server
Save your data on one server and access it from different rooms in your clinic.
Get training and help
If you are new to digital dentistry, we are here to help.
Free training videos
Our Youtube channel offers a wealth of Splint Studio training videos.
3Shape Community
Our community takes it even further with webinars and discussions for 3Shape customers.
Face-to-face trainings
For more in-depth training, your reseller can tailor training programs to match to your needs.
More details
How to get it?
Splint Studio is an add-on software to your TRIOS intraoral scanner. It is available through your reseller.
Clinic support
With the CliniCare service package, you can be sure to keep up to date with the latest advances in digital dentistry through expert training, unlimited upgrades and global support.
Lab support
Labs can choose between two support options: a free, no-subscription Basic package with limited services, or a full-service LabCare package including optional warranty and scanner replacement.
Start offering splints
Why wait? This is the time to start with new, profitable services. Ask your reseller for a demo.
Request demoContact your reseller regarding availability of 3Shape products in your region.
